Compact Loaders
Sibom Compact Track Loader
- Factory-direct manufacturer
- 1-year warranty
- Australia-focused support
- Fitment check before dispatch
Key Information
- Product Category
- Compact Loaders
Full specifications are listed below. Send your machine details for a compatibility confirmation.
- Compatible with major wheel loader, skid steer & excavator brands
- Heavy-duty construction for demanding Australian job sites
- OEM customization available on request
- Factory-direct pricing & Australia-wide support
Product Overview
Sibom compact track loader for Australian construction and landscaping. SR770T track loader for Australian job sites. View specs and request a quote.
Sibom Compact Loaders are designed for reliable performance in demanding working environments. Manufactured with durable materials and advanced engineering, they provide excellent operational efficiency and long service life across construction, agriculture, landscaping and material handling applications.
Product Feature

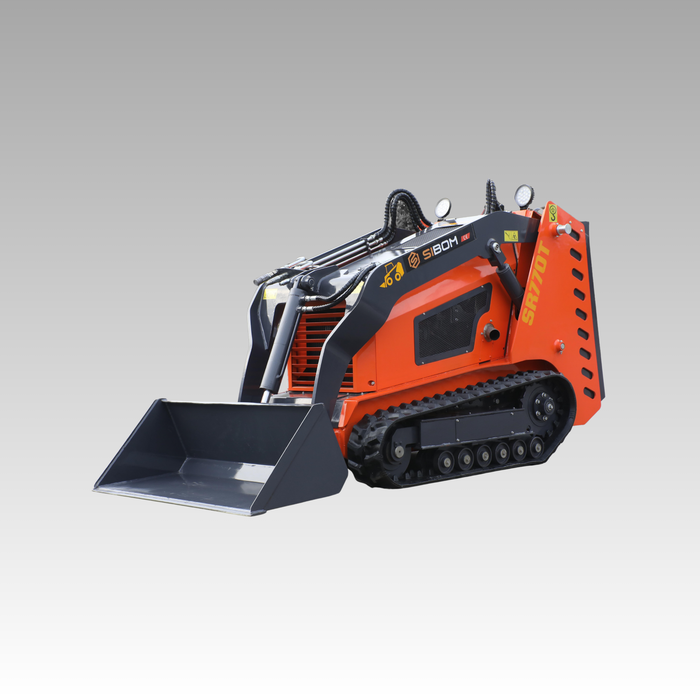

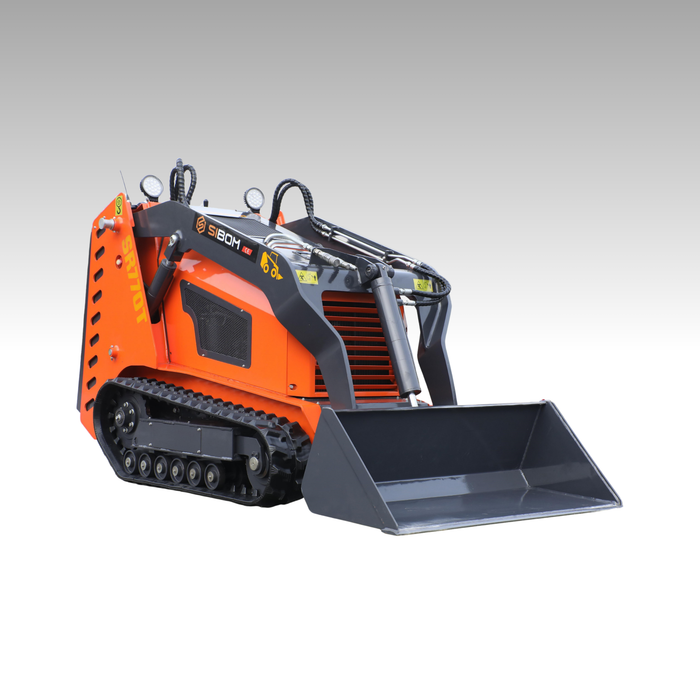

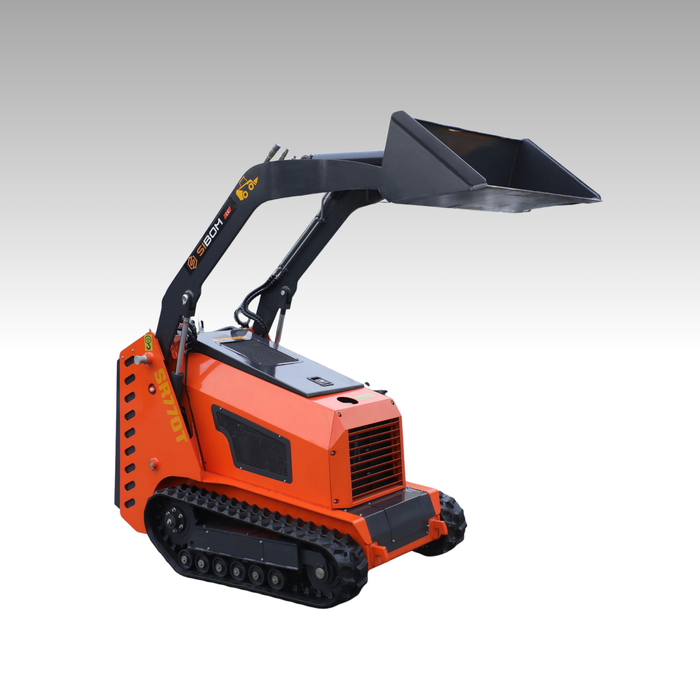

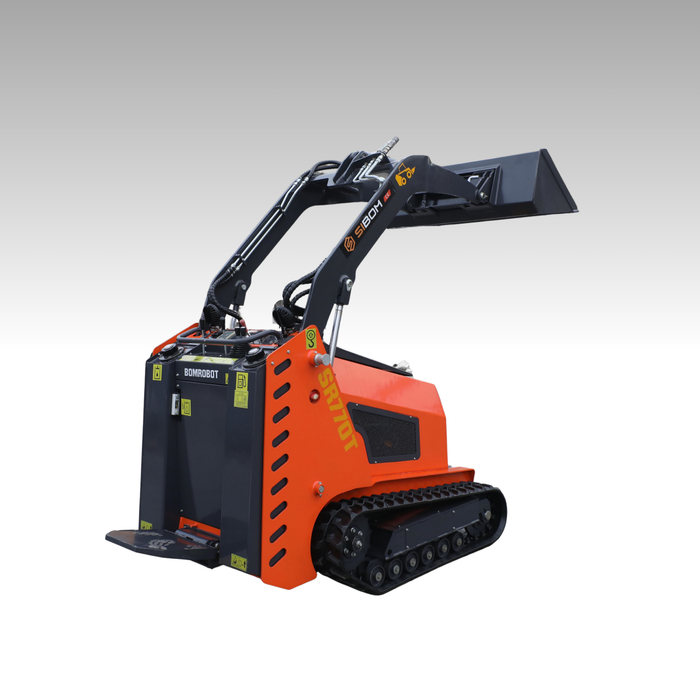

SR770T The track slip loader is a 35HP track walking model in the mini-series. The new appearance structure design meets the design standards of the slip loader. The rubber track walking mode has low pressure on the ground, which is more suitable for soft, gravel, wet, or muddy conditions.
The overall frame structure, higher strength, and good stability.

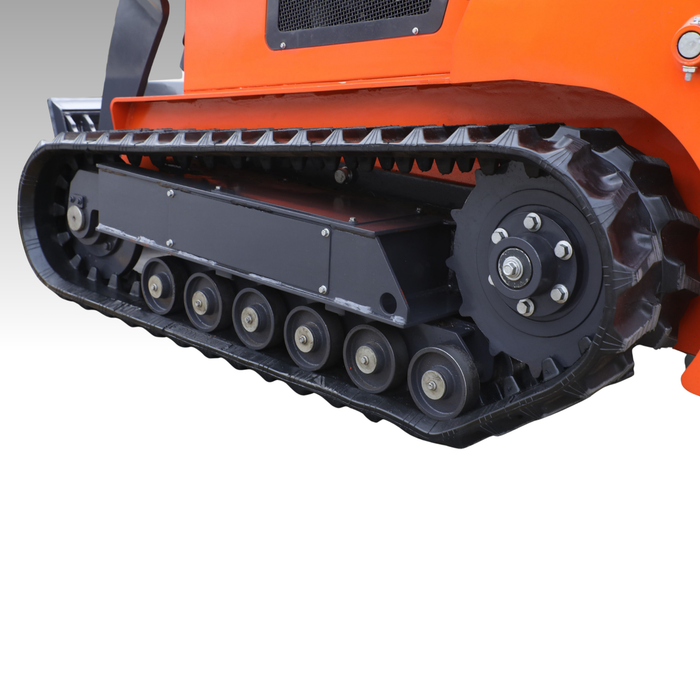

Assembly track frames, permanent sealed and lubricated forged steel roll and rollers, steel and rubber track, and triangular track drive structures are more suitable for undulating and complex road surfaces with lower maintenance costs.
The hydraulic system is made of brand components. It is stable and reliable, has pilot control, hydraulic leveling, flexible operation, and is labor-saving.
The engine power is strong, energy-saving, and environmentally protected, meets the national emission standards, and has the engine fault diagnosis function, It is convenient to check the engine fault, and reduce the continuous use of the engine fault, resulting in the engine irreparable t
rauma, to bring greater economic losses to customers.
Pedal damping design, more comfortable operation; the upper cover can be fully opened, and the side with a maintenance port, so maintenance operation is very convenient.

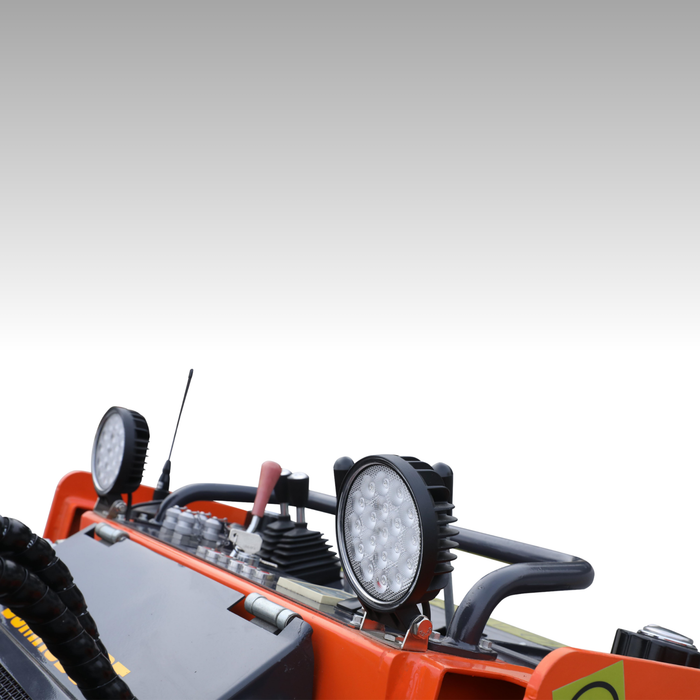

Integrated liquid crystal display speed hourly meter, convenient observation, standard power switch, use more safe.
The manual throttle is more convenient.
The international general quick change device can quickly and conveniently replace various parts; the hydraulic quick change connector can match with most manufacturers of quick change or host, with leakage function quick insertion, and easy plugging.
External pressure measuring port, convenient maintenance.
Product Specification
Key Features
Heavy-duty steel construction
High wear resistance for extended service life
Optimized design for loading efficiency
Suitable for harsh working conditions
OEM customization available
Quality inspection before dispatch
Compatible Machines
This attachment is engineered to fit common quick-attach and pin-on mounting systems used on wheel loaders, skid steer loaders and excavators across Australia. Not sure if it suits your machine? Send us your equipment brand and model and our team will confirm fitment before you order.
Technical Specifications
| Basic Size | |
|---|---|
| Working height - Full lift A (in) | 98.54 |
| Hinged height - full lift B (in) | 74.88 |
| Top guard height C (in) | 52.95 |
| Total length - with bucket D (in) | 94.64/108.11 (Pedal) |
| Down Angle - Full lift E (°) | 40 |
| Discharge height F (in) | 56.81 |
| Discharge distance G (in) | 21.25 |
| Up-tilt angle J (°） | 35 |
| Maximum uptilt angle M (°） | 95 |
| Seat height: O (in) | - |
| Wheelbase: P (in) | 36.61 |
| Total width - No bucket Q (in) | 42.99 |
| ground clearance S (in) | 4.6 |
| Bucket width R (in) | 44.88 |
| departure angle W（°） | 18 |
| Total length-no bucket V (in) | 71.45/84.88(pedal) |
| Turning radius. - No bucket Y (in) | 47.24 |
| Turning radius - with bucket X (in) | 55.31 |
| Engine Parameter | |
|---|---|
| Brand | YANMAR |
| Model | 3 TNV88 |
| Power (kw) | 26.9 |
| Fuel system | Machinery |
| Effluent standard | Non-road China three stages |
| Voltage (V) | 12 |
| Hydraulic Electrical System | |
|---|---|
| Attachment Hydraulic Flow Rate (L/min) | 45-60 |
| Fuel Tank Capacity (L) | 40 |
| Attachment Oil Supply Pressure (Mpa) | 18 |
| Working Travel Control Mode | Hydraulic Pilot Control |
| Basic spicifaction | |
|---|---|
| Rated Load (lbs) | 771.6 |
| No-load weight Weight (lbs) | 2976.24 |
| Tipping Load (lbs) | 1322.77 |
| Two-speed travel speed (mph) | ≤4 |
Why Choose Sibom
Factory-direct manufacturer — no middleman markups
OEM & custom specifications available
Proven export experience to Australia & New Zealand
Australia-focused quoting & after-sales support
Frequently Asked Questions
What applications is this loader suited for in Australia?
The Sibom Compact Track Loader is built for construction, landscaping, material handling and municipal work where tight access and attachment versatility matter. Australian contractors use these loaders on building sites, farms, council yards and remote projects.
Skid steer loader vs compact track loader — which should I choose?
Compact track loaders offer lower ground pressure and better traction on soft, muddy or sandy Australian ground. If you mainly work on paved or hard surfaces, a wheeled skid steer loader may be more economical. Tell us your typical terrain and we will help you choose the right Sibom loader series.
Can I use standard quick-attach attachments on this loader?
Yes. Sibom loaders are designed for common quick-attach mounting so you can pair buckets, grapples, augers, brooms and other attachments from the Sibom range or compatible third-party tools. Send your attachment list and we will confirm coupler and hydraulic flow compatibility.
Can Sibom deliver this loader to Australia?
Yes. Sibom regularly exports loaders and attachments to Australia. We arrange sea freight to your nearest port, provide export documentation and support customs clearance. Contact us for lead time and shipping options to your state.
What warranty and support does Sibom provide?
Sibom loaders are backed by a factory warranty and ongoing technical support. Our team assists with setup, hydraulic configuration and spare parts supply after delivery to Australia.
