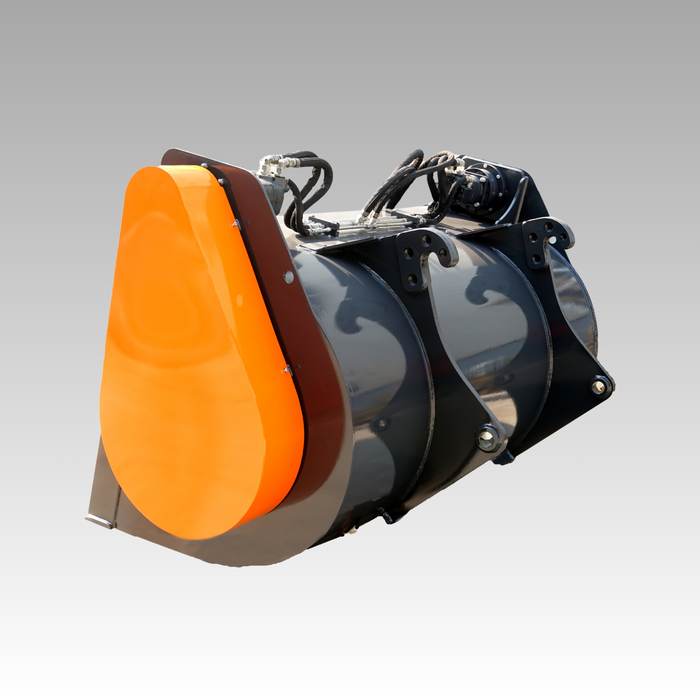

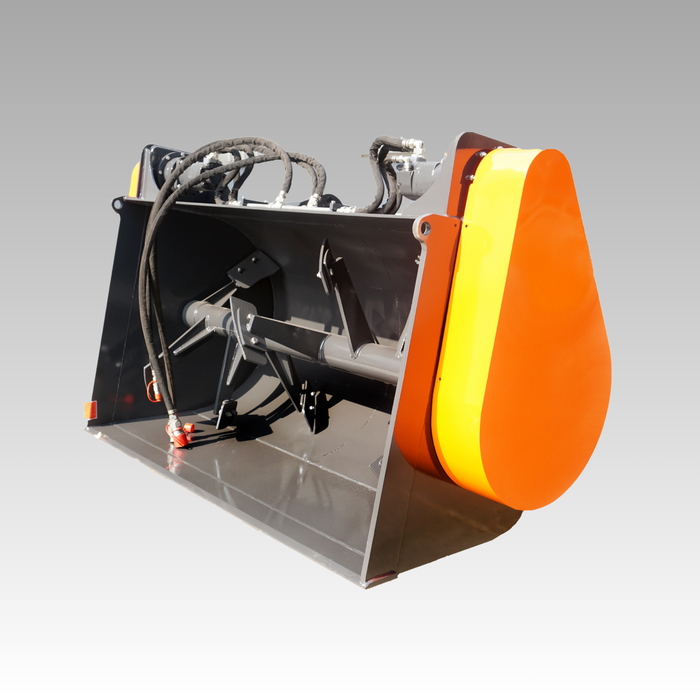

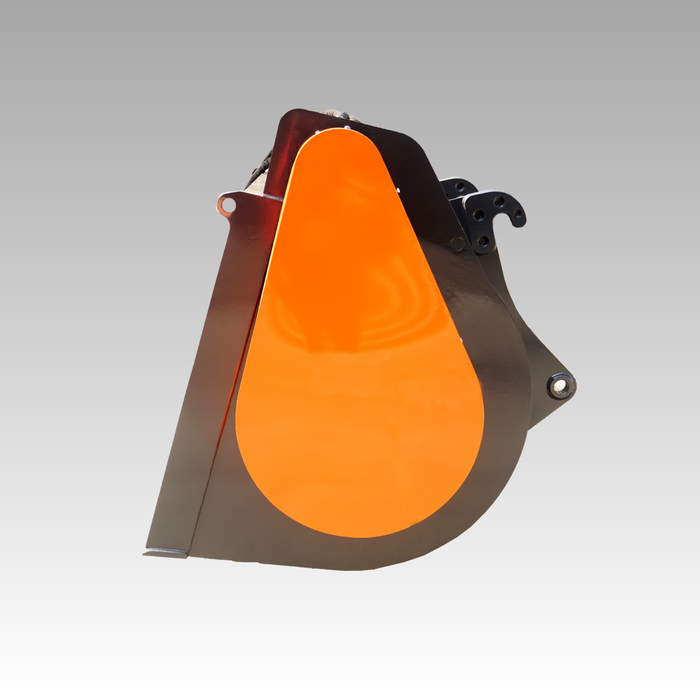

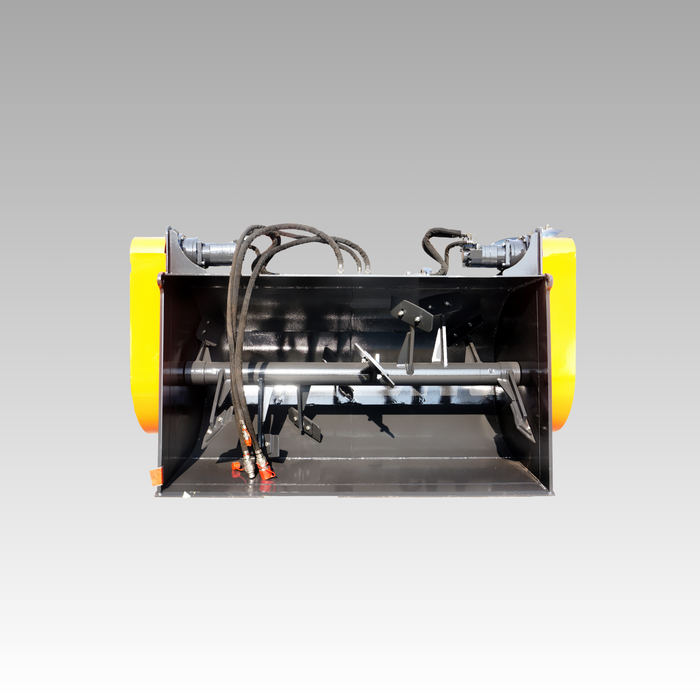

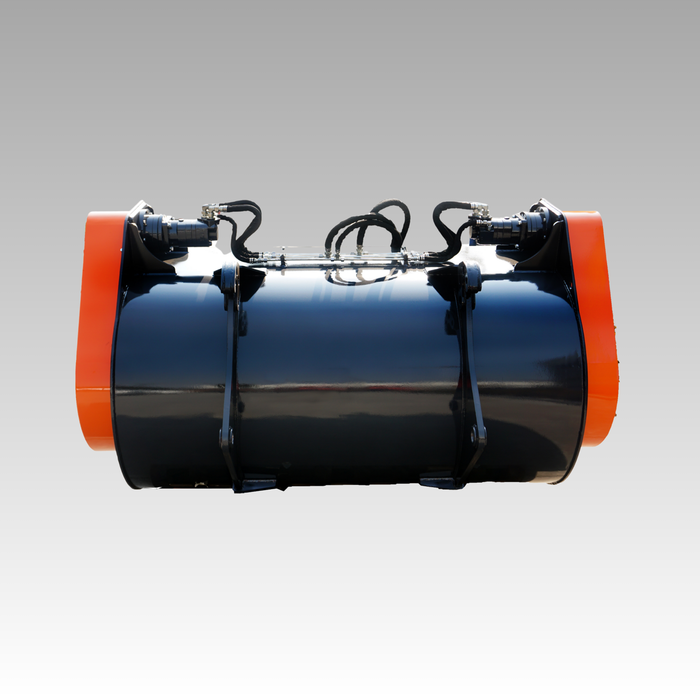

Sibom Wheel Loader Dual Motor Mixing Bucket, 2030 - 3915 psi Allowable Pressure, for 5 T loader

Sibom Wheel Loader Dual Motor Mixing Bucket, 2030 - 3915 psi Allowable Pressure, for 5 T loader

Contact Us
  • Compatible with major wheel loader & skid steer brands
  • Heavy-duty construction for demanding job sites
  • OEM customization available on request
  • Professional technical support & after-sales service

Product Overview

The Sibom Dual Motor Mixing Bucket combines the functions of both a mixer and a bucket to streamline the handling of materials such as yellow sand and stone. By breaking down cement particle agglomeration and promoting diffusion, it enhances mix consistency while reducing labor time and boosting overall work efficiency. The bucket is equipped with replaceable wear-resistant plates on its inner walls to minimize friction damage during mixing, thereby extending its service life. Powered by dual...

Sibom Municipal & Street Cleaning are designed for reliable performance in demanding working environments. Manufactured with durable materials and advanced engineering, they provide excellent operational efficiency and long service life across construction, agriculture, landscaping and material handling applications.

  • The Sibom Dual Motor Mixing Bucket combines the functions of both a mixer and a bucket to streamline the handling of materials such as yellow sand and stone.

  • By breaking down cement particle agglomeration and promoting diffusion, it enhances mix consistency while reducing labor time and boosting overall work efficiency.

  • The bucket is equipped with replaceable wear-resistant plates on its inner walls to minimize friction damage during mixing, thereby extending its service life.

  • Powered by dual hydraulic motors, this system ensures smooth, rapid stirrer rotation for accelerated concrete mixing.

  • Its adjustable, long round hole stirrer paddle allows flexible positioning relative to the bucket’s bottom and side plates, accommodating various applications.

  • Customers should install the appropriate limiting block (e.g., collecting bucket, tipping bucket) according to the host machine’s configuration.

Key Features

Heavy-duty steel construction

High wear resistance for extended service life

Optimized design for loading efficiency

Suitable for harsh working conditions

OEM customization available

Quality inspection before dispatch

Technical Specifications

Modelwdmmb20
Overall Length (in)96.06
Overall Width (in)45.08
Overall Height (in)56.46
Production Capacity of One Bucket (cubic yards)2.62
Flow Rate (gallons/min)50.20 - 66.04
Allowable Pressure (psi)2,030.52 - 3,915.94
Weight (including hanging) (lbs)3,417.17
Unloading methodPositive
Use of models5 tonne loader

Need a Custom Attachment?

Contact Sibom Industry for OEM solutions, bulk orders or equipment-specific requirements.

Call +61 401962909
