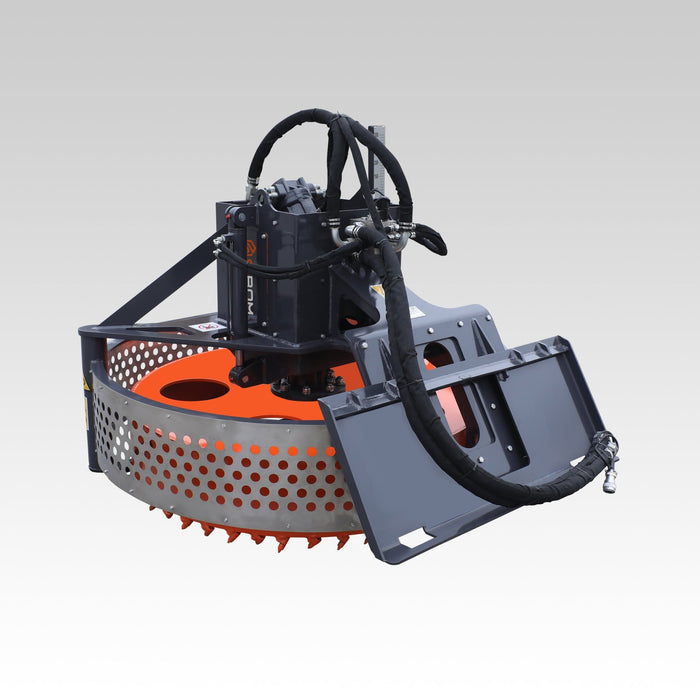

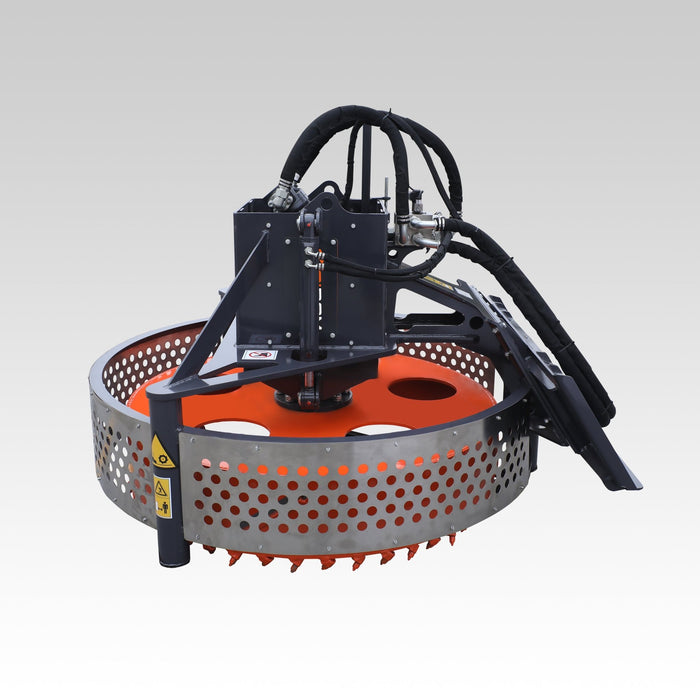

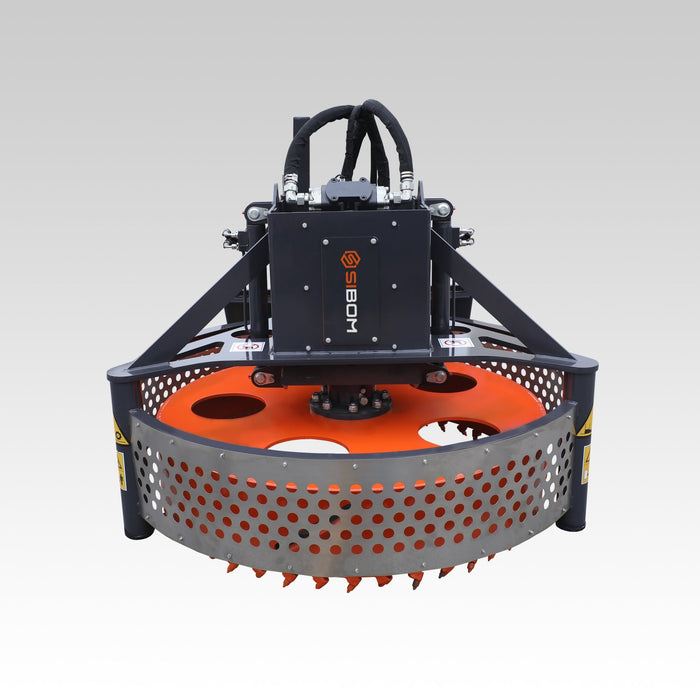

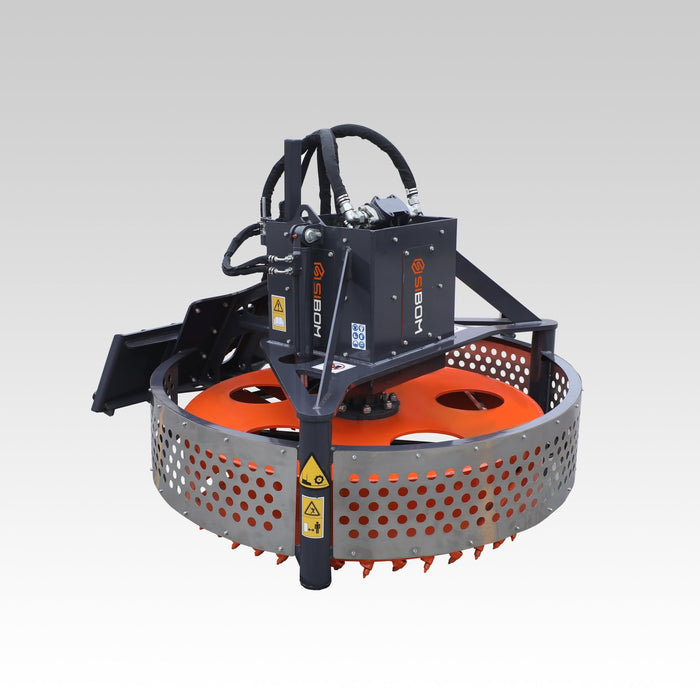

Sibom Skid Steer Manhole saw, Milling Drum Diameter 53", Heavy-duty Hydraulic Motors, Hydraulic-powered Breakout, Carbide-tipped Picks
Sibom Skid Steer Manhole saw, Milling Drum Diameter 53", Heavy-duty Hydraulic Motors, Hydraulic-p...
- Compatible with major wheel loader & skid steer brands
- Heavy-duty construction for demanding job sites
- OEM customization available on request
- Professional technical support & after-sales service
Product Overview
The Sibom Industry 0215 Series Manhole Saw offers precision cutting for manhole and utility installation with reliable performance and easy maneuverability.
Sibom Municipal & Street Cleaning are designed for reliable performance in demanding working environments. Manufactured with durable materials and advanced engineering, they provide excellent operational efficiency and long service life across construction, agriculture, landscaping and material handling applications.
- The Sibom manhole cover milling machine is an innovative piece of maintenance equipment designed for urban road inspection wells.
- It can quickly and efficiently detect and eliminate various issues within the well.
- This machine is the ideal solution for repairing manhole covers, as it not only significantly improves work efficiency but also enhances construction quality, resulting in smoother road surfaces and greatly improved aesthetics.
- Dimensions: 64.6” W x 54.8” H x 74.8” L

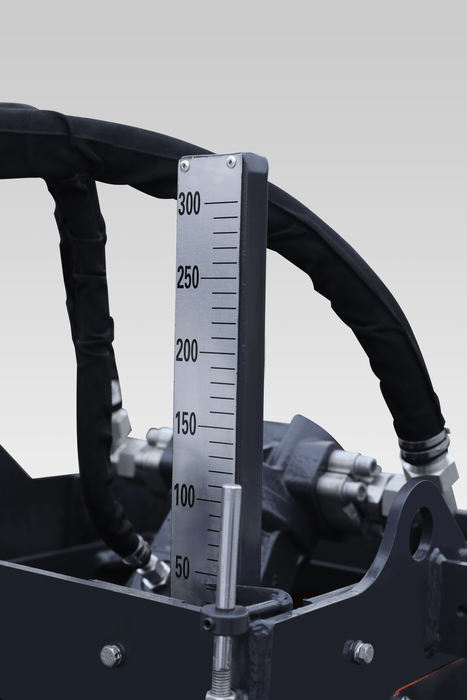

- Offers a maximum milling depth of 11.8 inches, allowing for deep and efficient material removal
- Creates a milling groove with a width of 1.6 inches, ensuring precise and controlled cutting.
- The milling drum has an internal diameter of 53.5 inches, providing robust performance for demanding applications.
Key Features
Heavy-duty steel construction
High wear resistance for extended service life
Optimized design for loading efficiency
Suitable for harsh working conditions
OEM customization available
Quality inspection before dispatch
Technical Specifications
| Model | sms60 |
|---|---|
| Overall Length (in) | 74.8 |
| Overall Width (in) | 64.6 |
| Overall Height (in) | 54.8 |
| Weight (Including the pendant) (lbs) | 1984.2 |
| Maximum milling depth (in) | 11.8 |
| Width of milling groove (in) | 1.6 |
| Internal diameter of milling drum (in) | 53.5 |
| Working Flow (GPM) | 34.3 - 39.6 |
| Pressure (psi) | 3625 |
| Suitable Machine | Above 100hp/high flow skid steer |
| Optional accessories | Blade cooling (spray) system |
