Material Handling

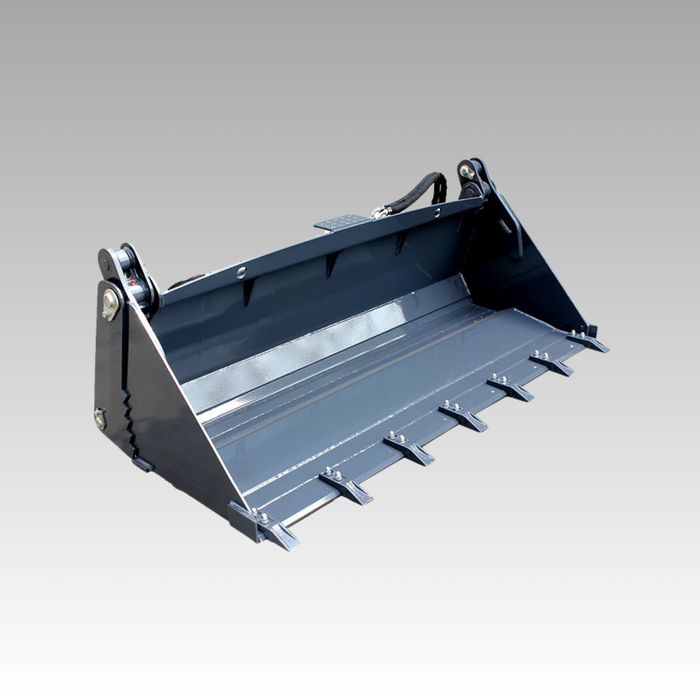

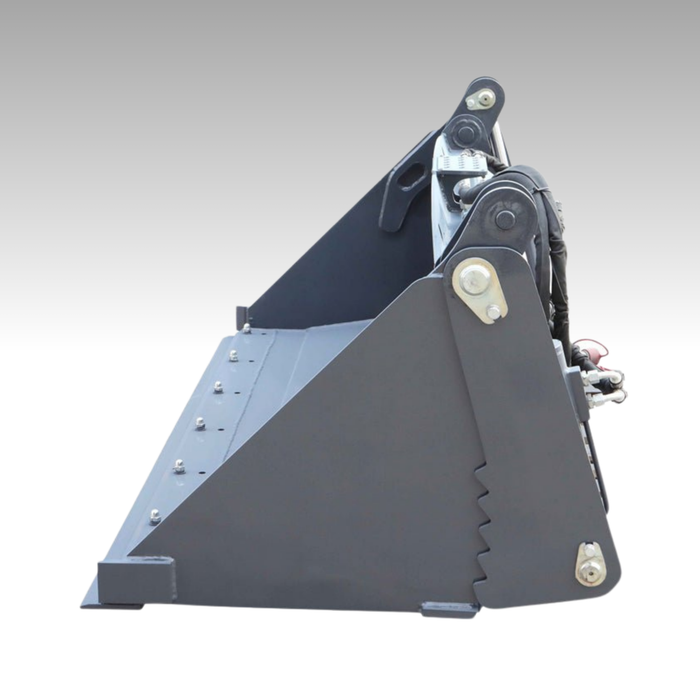

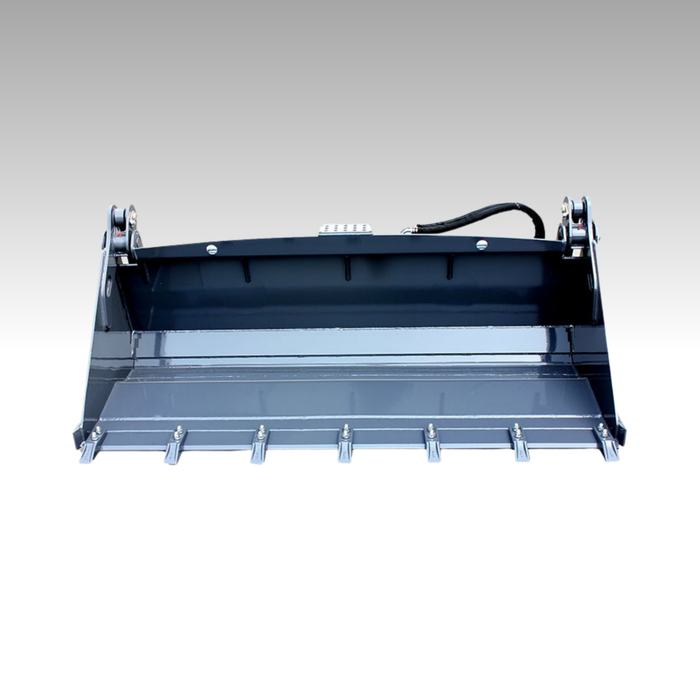

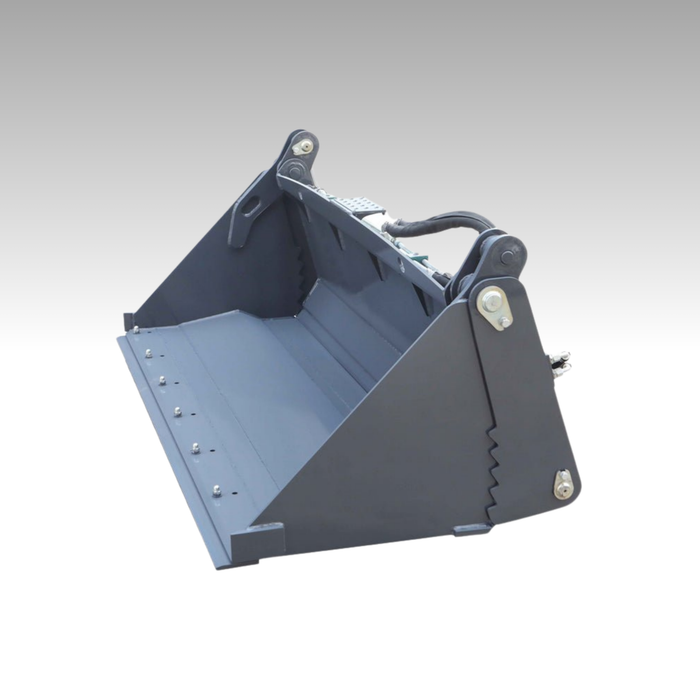

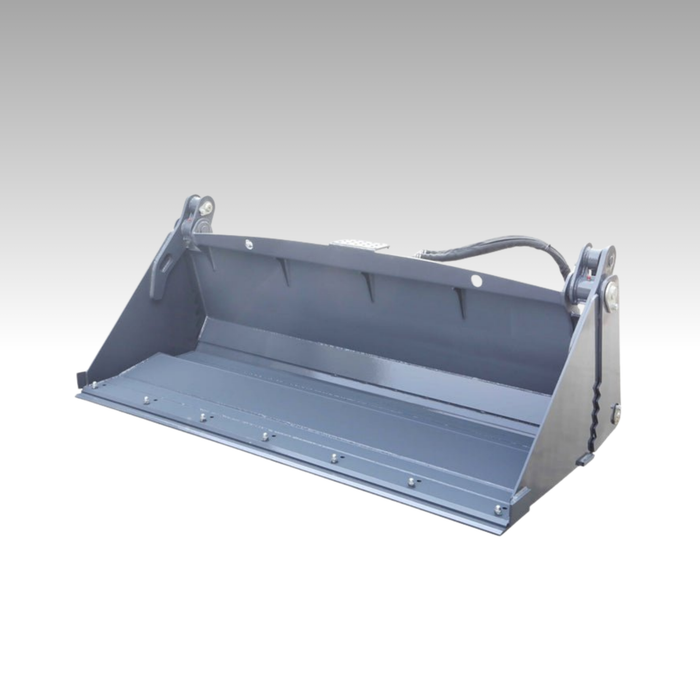

Sibom Skid steer Heavy Duty 4 in 1 Bucket, 31" Open Distance
Sibom Skid steer Heavy Duty 4 in 1 Bucket, 31" Open Distance
- Compatible with major wheel loader & skid steer brands
- Heavy-duty construction for demanding job sites
- OEM customization available on request
- Professional technical support & after-sales service
Product Overview
Maximize versatility with the Sibom Industry Heavy Duty 4 in 1 Bucket, designed for Skid Steer/Mini SS with adjustable open distance for various tasks.
Sibom Material Handling are designed for reliable performance in demanding working environments. Manufactured with durable materials and advanced engineering, they provide excellent operational efficiency and long service life across construction, agriculture, landscaping and material handling applications.
- Available in widths of 40", 60", 72", and 84", with bucket capacities ranging from 0.09 m³ (3.2 ft³) to 0.76 m³ (26.8 ft³).
- Multifunctional: Use as a bucket, grapple, dozer blade, or for back-dragging. Serrated grapple edges securely hold heavy or odd-shaped objects.

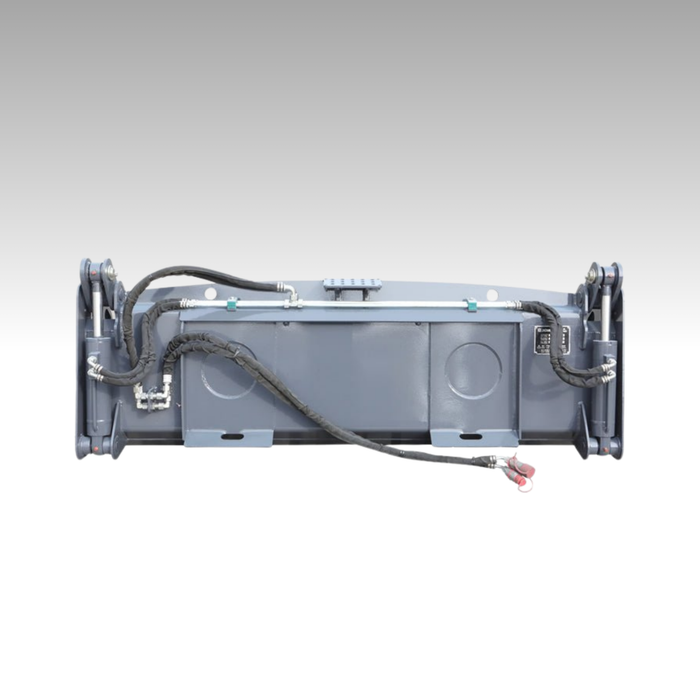

- Equipped with 2.5” bore by 8” stroke hydraulic cylinders and grease fittings on all pivot points for long-lasting durability.
- Reinforced bottom and clamshell for added strength and rigidity.
- Optional teeth or bolt-on cutting edges are available.
Key Features
Heavy-duty steel construction
High wear resistance for extended service life
Optimized design for loading efficiency
Suitable for harsh working conditions
OEM customization available
Quality inspection before dispatch
Technical Specifications
| Model | Smpb60b | Smpb72a | Smpb84a |
|---|---|---|---|
| Length (in) | 34.3 / 36.4 | 34.3 / 36.4 | 34.3 / 36.4 |
| Total Width (in) | 62.6 | 74.4 | 83.5 |
| Total Height (in) | 28.1 | 28.1 | 28.1 |
| Open Distance (in) | 31.5 | 31.5 | 31.5 |
| Weight (Including Pendant) (lbs) | 758.4 | 831.1 | 903.9 |
| Flat / Stack Bucket Capacity (cu. ft.) | 12.7 / 16.9 | 14.1 / 18.4 | 15.6 / 19.8 |
| Work Flow (gal/min) | 5.3 - 7.9 | 5.3 - 7.9 | 5.3 - 7.9 |
| Maximum Pressure (psi) | 3045.8 | 3045.8 | 3045.8 |
| Applicable model | Welded edge teeth, optional bucket teeth, or accessory edge plate | ||
