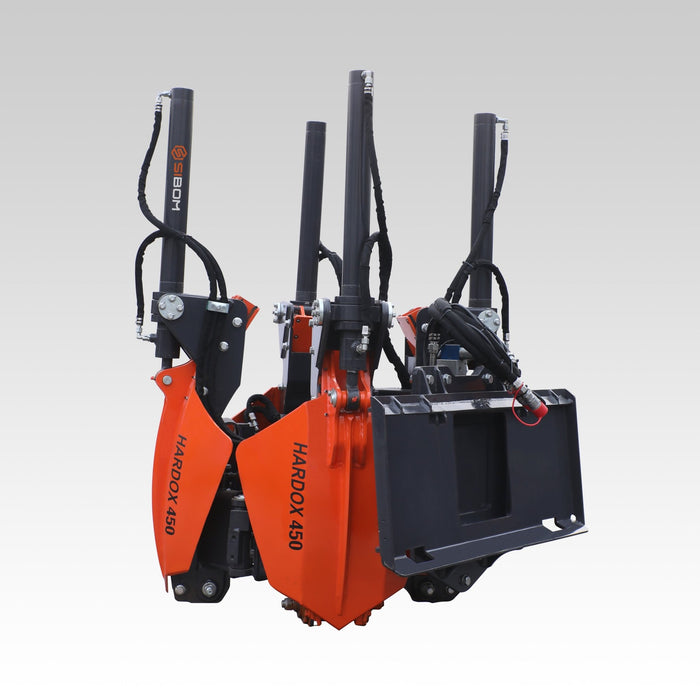

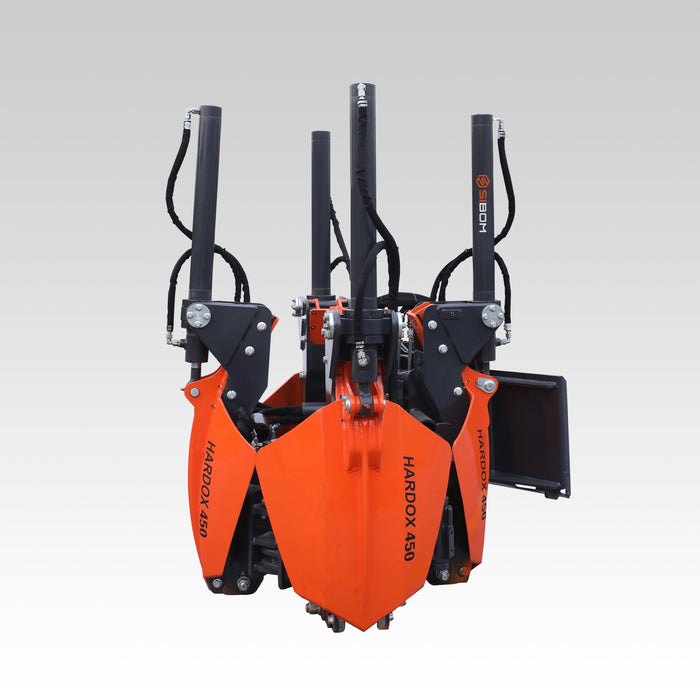

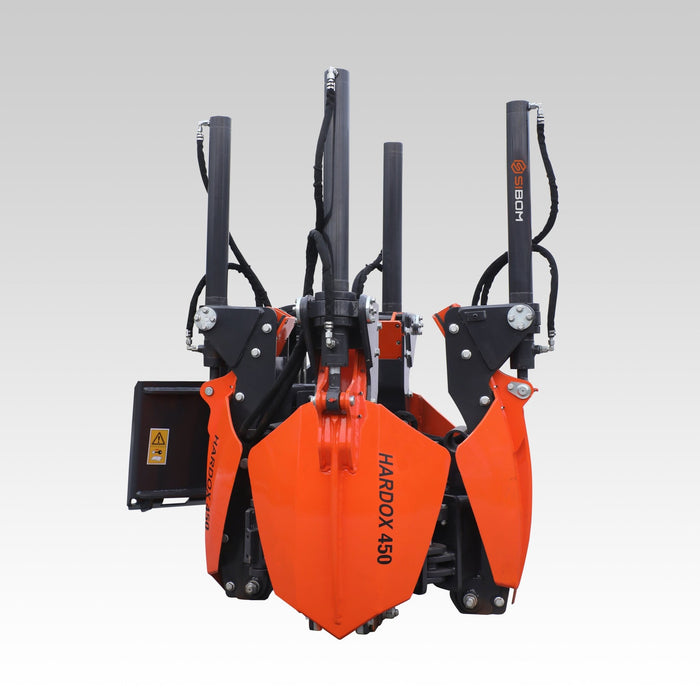

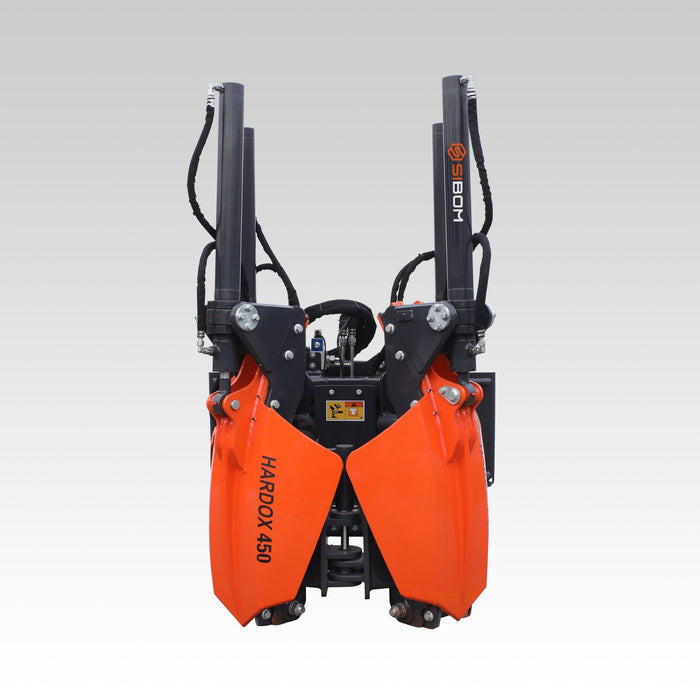

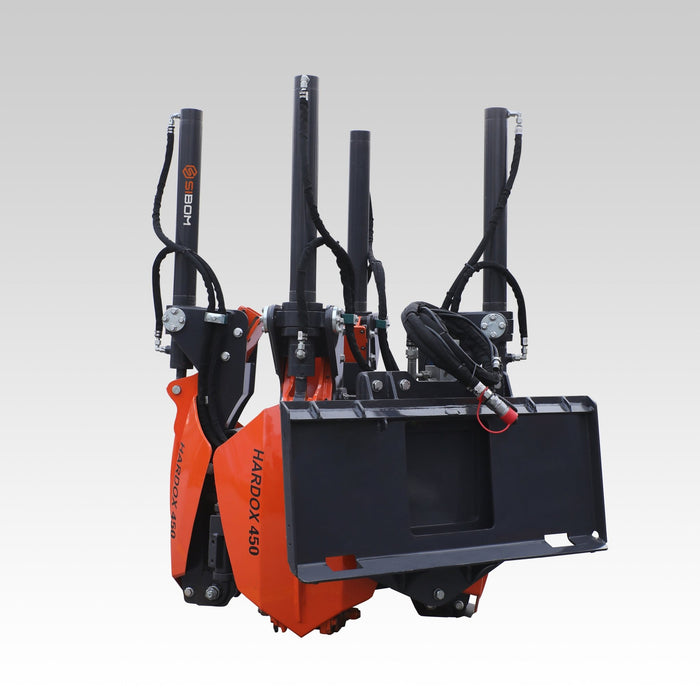

Sibom Skid Steer Tree Spade, 33"-45" Root Ball Diameter, 4 HARDOX steel blades
Sibom Skid Steer Tree Spade, 33"-45" Root Ball Diameter, 4 HARDOX steel blades
- Compatible with major wheel loader & skid steer brands
- Heavy-duty construction for demanding job sites
- OEM customization available on request
- Professional technical support & after-sales service
Product Overview
The Sibom Tree Spade is designed for efficient excavation, transportation, and planting of small-diameter trees. With features like easy installation, flexible operation, high efficiency, and reliable performance, it enables operators to complete digging, transporting, and planting tasks without leaving the main machine. The conical-shaped soil ball minimizes damage to the root system and preserves the surrounding soil structure, ensuring the tree's survival. Suitable for trees with horizonta...
Sibom Forestry & Landscaping are designed for reliable performance in demanding working environments. Manufactured with durable materials and advanced engineering, they provide excellent operational efficiency and long service life across construction, agriculture, landscaping and material handling applications.
- The Sibom Tree Spade is designed for efficient excavation, transportation, and planting of small-diameter trees.
- With features like easy installation, flexible operation, high efficiency, and reliable performance, it enables operators to complete digging, transporting, and planting tasks without leaving the main machine.
- The conical-shaped soil ball minimizes damage to the root system and preserves the surrounding soil structure, ensuring the tree's survival.
- Suitable for trees with horizontally growing roots, it requires adjustable pressure and a reversible oil supply when adapted to an excavator, offering versatility and superior functionality.
Key Features
Heavy-duty steel construction
High wear resistance for extended service life
Optimized design for loading efficiency
Suitable for harsh working conditions
OEM customization available
Quality inspection before dispatch
Technical Specifications
| Model | sts436 | sts444a | sts36c | sts36ca | sts444d |
|---|---|---|---|---|---|
| Overall Length (in) | 65.2 | 83.1 | 41 | 41 | 88.6 |
| Overall Width (in) | 62.8 | 83.1 | 62 | 62 | 88.6 |
| Weight (lbs) | 1874 | 2200 | 1742 | 1742 | 2205 |
| Fit Tree Diameter (in) | ≤ 3.94 | ≤ 4.72 | ≤ 3.94 | ≤ 3.94 | ≤47.2 |
| Ball Diameters Available (in) | ≤ 33.5 | ≤ 43.7 | ≤ 34.6 | ≤ 34.6 | φ45.3/φ40.6/φ35.4 |
| Digging Depth (in) | ≤ 28.3 | ≤ 39.4 | ≤ 27.6 | ≤ 22.2 | 30.3/26.4/22.4 |
| Operating Pressure (psi) | 3046 | 3046 | 3046 | 3046 | 3046 |
| Operating Voltage (V) | DC12/DC24 | DC12/DC24 | DC12/DC24 | DC12/DC24 | DC12/DC24 |
| Liter Highest Total Height Blade (in) | 73.6 | 101.4 | 66 | ||
| Lowest Total Height Blade (in) | 73.6 | 100.6 | |||
| Optional accessories | (1)Optional support； (2)Optional mechanical or hydraulic legs (mounted on the back of the loader) |
(1)Optional support； (2)Optional mechanical or hydraulic legs (mounted on the back of the loader) |
|||
| Hydraulic outriggers | Required for skid steer loaders (not required for remaining models) |
||||
| Suit machine | Skid loader/wheel loader | Skid loader/wheel loader | ≥75KW Skid Steer Loader/ Wheel Loader/ ≥7.5T(Excavator) |
Rated loads: Skid steer loaders over 3527 lbs. 4409-6613 lbs. loaders Excavators over 26,455 lbs |
