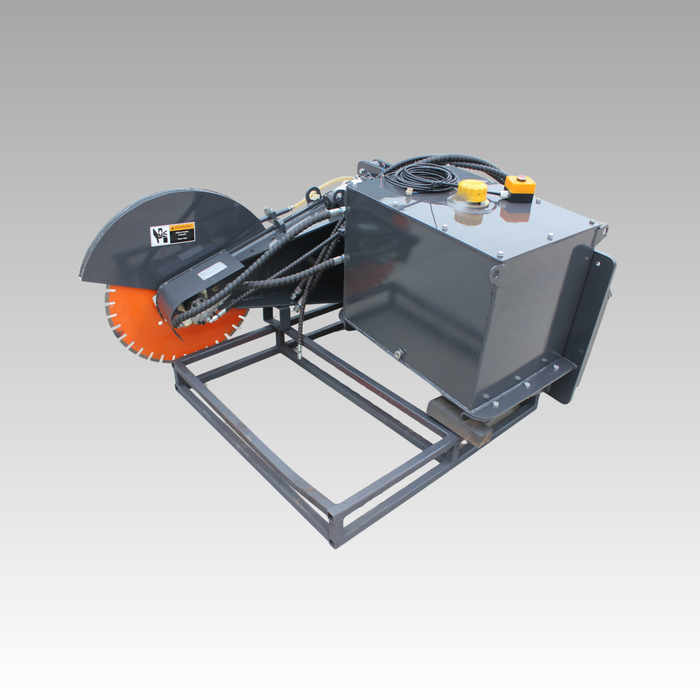

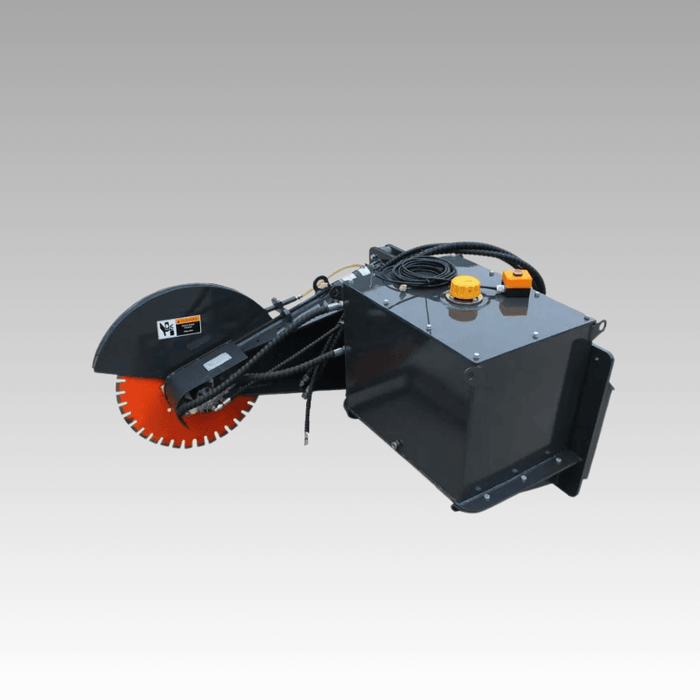

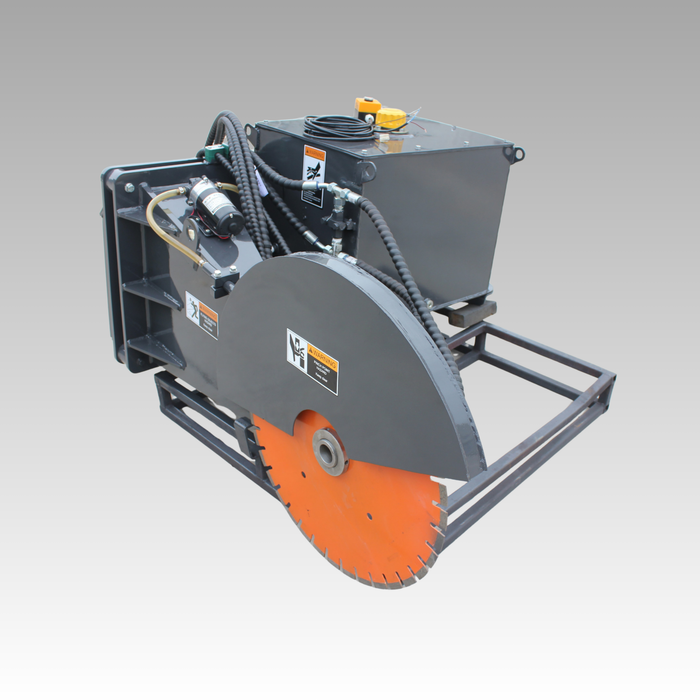

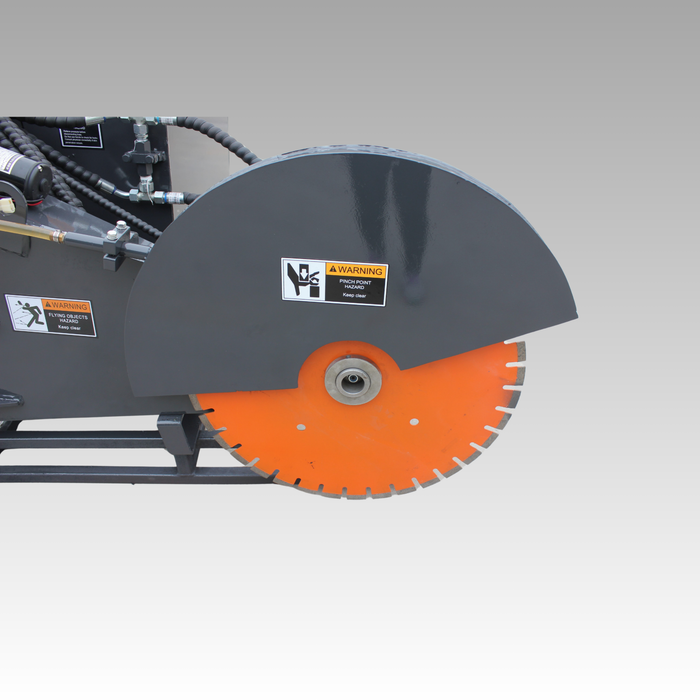

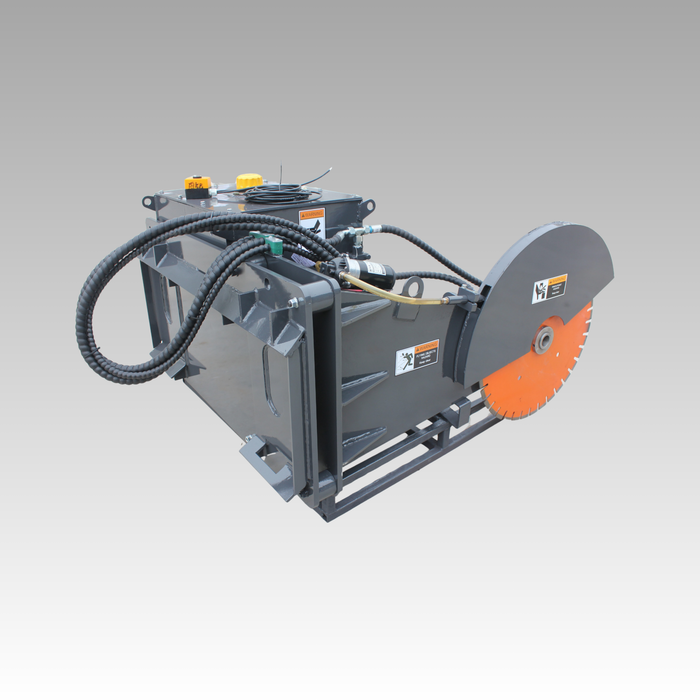

Sibom Skid Steer High-Performance Circular Saw Diamond Blade with Automatic Water Spray

Compatible with major wheel loader & skid steer brands
Heavy-duty construction for demanding job sites
OEM customization available on request
Professional technical support & after-sales service

Product Overview

Cuts asphalt, frozen ground, and hard soil, achieving a cutting width of 100 mm (3.9”) and depths of up to 600 mm (23.6”). Electro-hydraulic control enables precise depth and side shift adjustments. The high-torque hydraulic motor ensures efficiency. Durable, replaceable milling cutters. Compatible with high-flow skid steer loaders. Ideal for road repairs and municipal construction.

Sibom Agriculture & Feed are designed for reliable performance in demanding working environments. Manufactured with durable materials and advanced engineering, they provide excellent operational efficiency and long service life across construction, agriculture, landscaping and material handling applications.

Cuts asphalt, frozen ground, and hard soil, achieving a cutting width of 100 mm (3.9”) and depths of up to 600 mm (23.6”).
Electro-hydraulic control enables precise depth and side shift adjustments.
The high-torque hydraulic motor ensures efficiency.
Durable, replaceable milling cutters.
Compatible with high-flow skid steer loaders.
Ideal for road repairs and municipal construction.

Key Features

Heavy-duty steel construction

High wear resistance for extended service life

Optimized design for loading efficiency

Suitable for harsh working conditions

OEM customization available

Quality inspection before dispatch

Technical Specifications

Model	scs40	scs60	scs70
Total Length (in)	45.5	55.9	55.9
Total Width (in)	47.2	47.2	47.2
Total Height (in)	29.9	32.3	32.3
Cutter Diameter (in)	15.7	23.6	27.6
Max. Cutting Depth (in)	4.7	8.7	10.6
Weight (lbs)	665.8	767.2	771.6
Working Flow (GPM)	13.2 - 15.9	13.2 - 15.9	13.2 - 15.9
Allow Maximum Pressure (psi)	3045.8	3045.8	3045.8
Operating Voltage（V）	DC12/24	DC12/24	DC12/24
