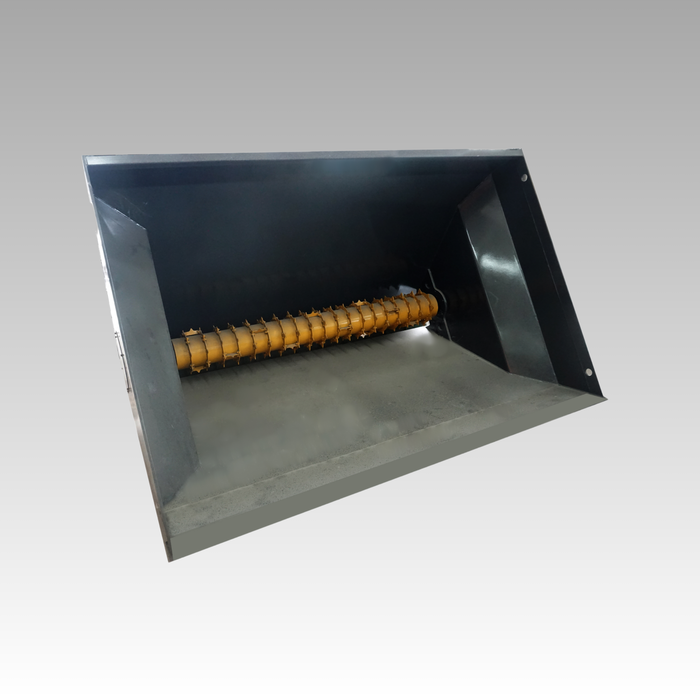

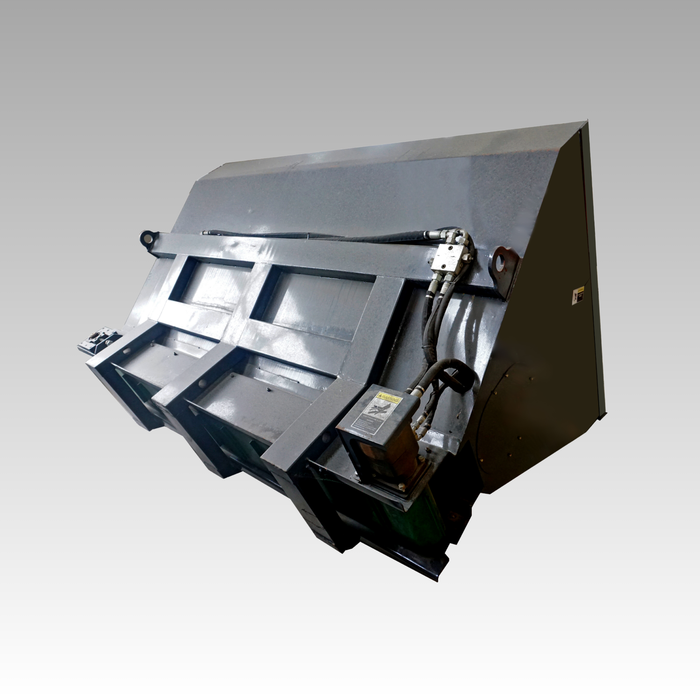

SIbom Wheel Loader Bucket Bed Feeder, 1.09 - 5.47 yards Throwing Distance, for 5T Loader

SIbom Wheel Loader Bucket Bed Feeder, 1.09 - 5.47 yards Throwing Distance, for 5T Loader

Contact Us
  • Compatible with major wheel loader & skid steer brands
  • Heavy-duty construction for demanding job sites
  • OEM customization available on request
  • Professional technical support & after-sales service

Product Overview

The Sibom Bucket Bed Feeder is an advanced feeding solution designed to transfer various fine materials—such as sun-dried cow dung, sand, and crushed straw—directly from its hopper to the desired location. Driven by a hydraulic motor, the built-in conveyor system provides efficient, controlled throwing in both directions, minimizing unnecessary maneuvers. Its robust bucket structure facilitates quick loading, while an internal roller and removable cutter head crush and process larger material...

Sibom Agriculture & Feed are designed for reliable performance in demanding working environments. Manufactured with durable materials and advanced engineering, they provide excellent operational efficiency and long service life across construction, agriculture, landscaping and material handling applications.

  • The Sibom Bucket Bed Feeder is an advanced feeding solution designed to transfer various fine materials—such as sun-dried cow dung, sand, and crushed straw—directly from its hopper to the desired location.

  • Driven by a hydraulic motor, the built-in conveyor system provides efficient, controlled throwing in both directions, minimizing unnecessary maneuvers.

  • Its robust bucket structure facilitates quick loading, while an internal roller and removable cutter head crush and process larger materials, ensuring smooth feeding.

  • Easy to operate and maintain, this feeder boosts mechanized operation, reduces labor intensity, and enhances overall productivity.

Key Features

Heavy-duty steel construction

High wear resistance for extended service life

Optimized design for loading efficiency

Suitable for harsh working conditions

OEM customization available

Quality inspection before dispatch

Technical Specifications

Modelwbbf50
Overall Length (in)73.62
Overall Width (in)112.2
Overall Height (in)70.08
Weight (including hanging) (lbs)3,351.03
Bucket Capacity (cubic yards)6.54
Conveying Belt Width (in)14.96
Outlet directionLeft/Right
Throwing Distance (yards)1.09 - 5.47
Flow Rate (gallons/min)39.63 - 47.55
Allowable Maximum Pressure (psi)261.07
Hanging model5T  Loader
