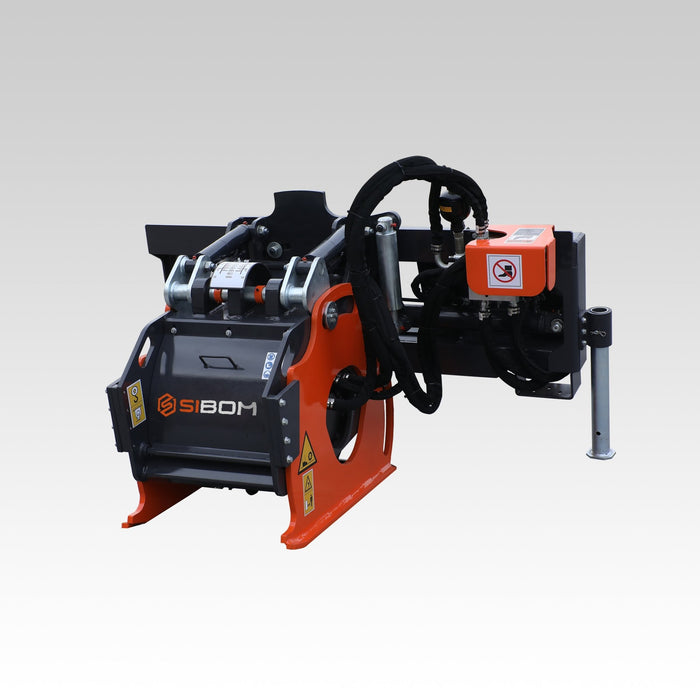

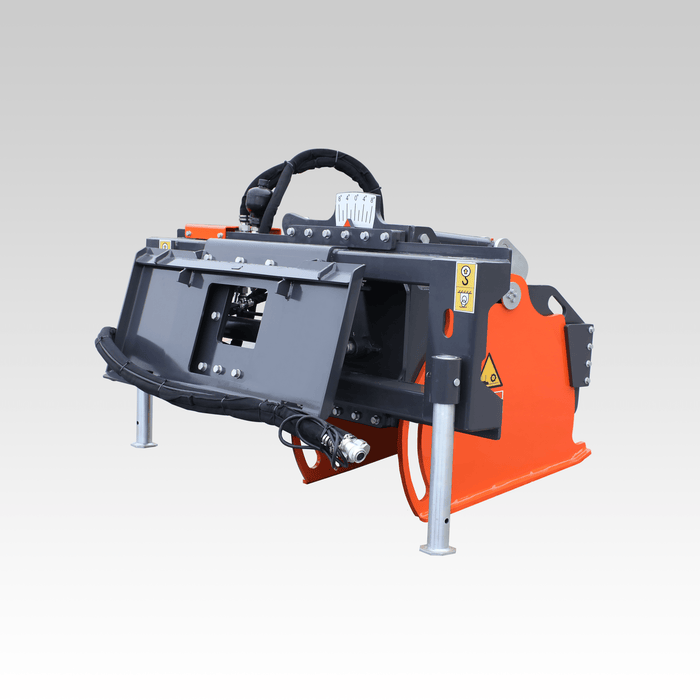

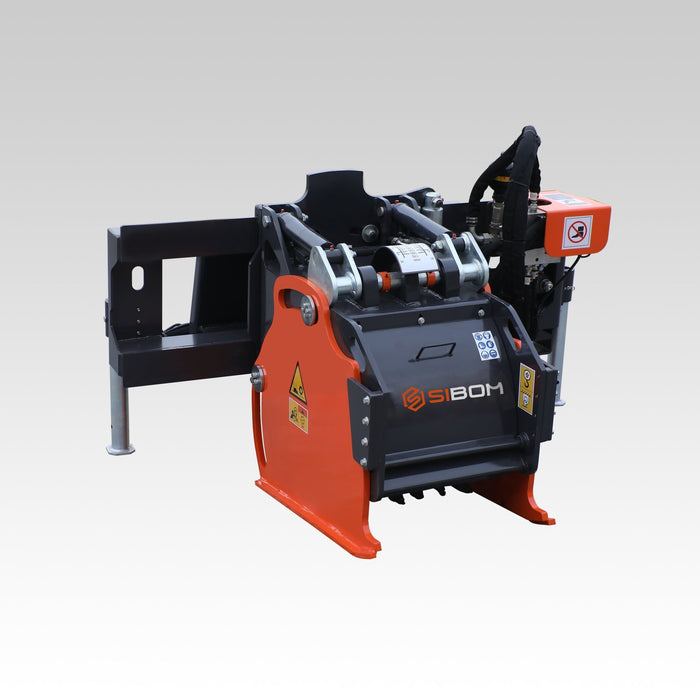

SIBOM Skid Steer Hydraulic Cold Planer, Precision Control, High Flow Required
SIBOM Skid Steer Hydraulic Cold Planer, Precision Control, High Flow Required
- Compatible with major wheel loader & skid steer brands
- Heavy-duty construction for demanding job sites
- OEM customization available on request
- Professional technical support & after-sales service
Product Overview
Cut through tough materials with Sibom Industry's Skid Steer Cold Planer, offering precision with 12"-20" working widths and certified performance.
Sibom Road Construction & Compaction are designed for reliable performance in demanding working environments. Manufactured with durable materials and advanced engineering, they provide excellent operational efficiency and long service life across construction, agriculture, landscaping and material handling applications.
- The Sibom Cold Planer is a high-performance skid steer attachment designed for milling asphalt and concrete surfaces on roads, airports, and freight yards.

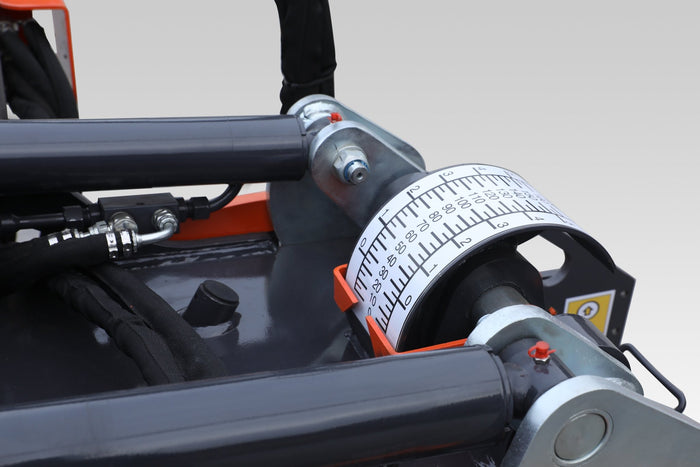

- Self-leveling function adapts to uneven surfaces, ensuring precise depth control and efficient material removal.
- Compact design allows for easy operation in tight spaces with high work efficiency and simple construction technology.
- Four models available with milling widths from 11.8” to 39.4” and depths from 0” to 6.7”.

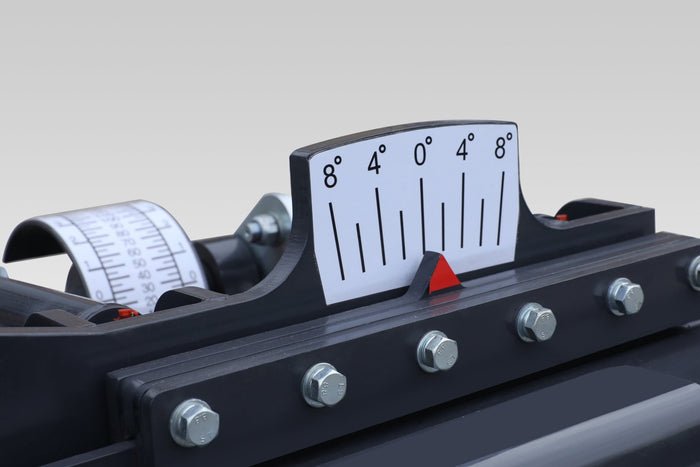

- Features a ±8° inclination angle, maximum lateral shift of up to 20.1”, and operates at a flow rate of 21.1 - 52.8 GPM with a maximum pressure of 3045 psi.
- Compatible with skid steers equipped with high-flow hydraulic output.
Key Features
Heavy-duty steel construction
High wear resistance for extended service life
Optimized design for loading efficiency
Suitable for harsh working conditions
OEM customization available
Quality inspection before dispatch
Technical Specifications
| Model | scp12i | scp18i | scp24i | scp40i |
|---|---|---|---|---|
| Length (in) | 47.8 | 47.8 | 47.8 | 43.3 |
| Width (in) | 69.3 | 69.3 | 69.3 | 69.3 |
| Height (in) | 34.3 | 38.2 | 38.2 | 34.6 |
| Milling Width (in) | 11.8 | 17.7 | 23.6 | 39.4 |
| Milling Depth (in) | 0 - 4.3 | 0 - 6.7 | 0 - 6.7 | 0 - 5.1 |
| Maximum Lateral Shift Distance (in) | 20.1 | 20.1 | 20.1 | 16.5 |
| Angle of Inclination (degrees) | ± 8 | ± 8 | ± 8 | ± 8 |
| Work Flow (gal/min) | 21.1 - 29.0 | 31.7 - 39.6 | 31.7 - 44.9 | 31.7 - 52.8 |
| Maximum Allowable Pressure (psi) | 3045.8 | 3045.8 | 3045.8 | 3045.8 |
| Working Voltage (V) | DC 12/24 | DC 12/24 | DC 12/24 | DC 12/24 |
| Theoretical Weight (lbs) | 1873.9 | 2094.4 | 2425.1 | 2535.3 |
| Choose accessories | 1. Optional blade (asphalt blade and concrete blade) 2. spray system |
|||
| Adapted models | Skid Steer loader (complete with large flow output) | |||
