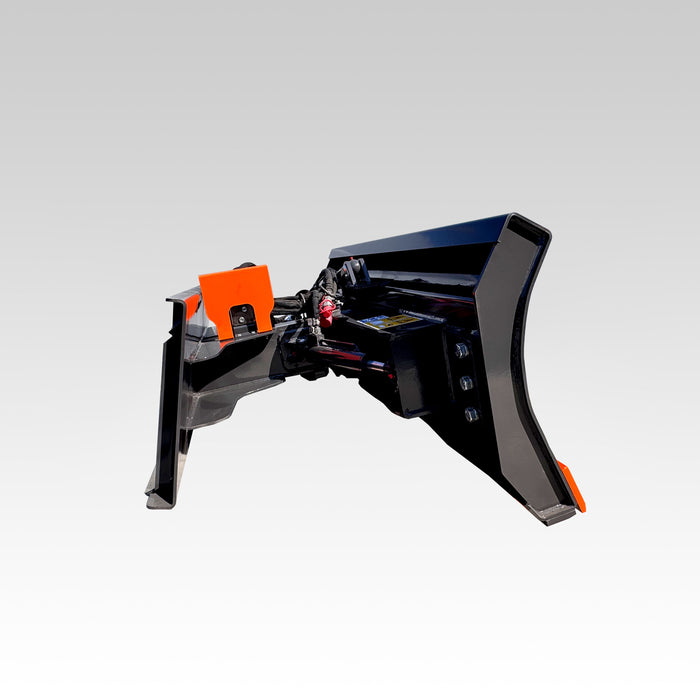

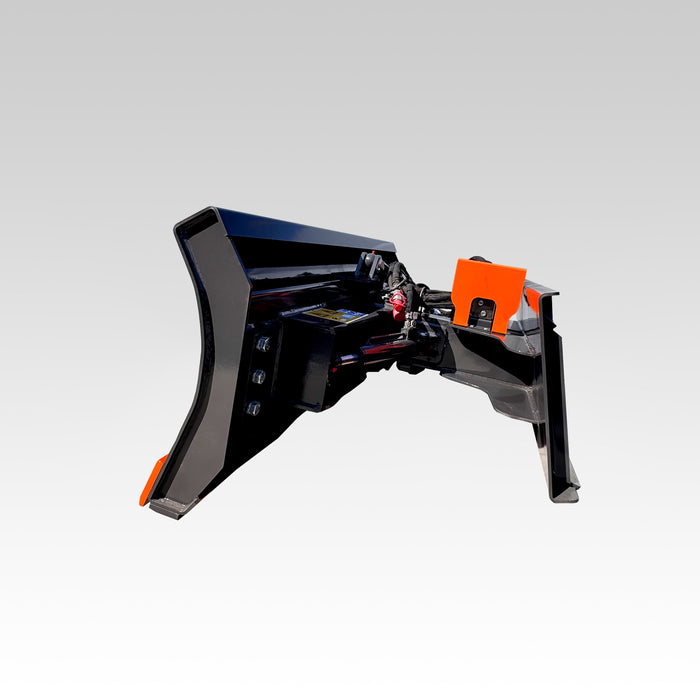

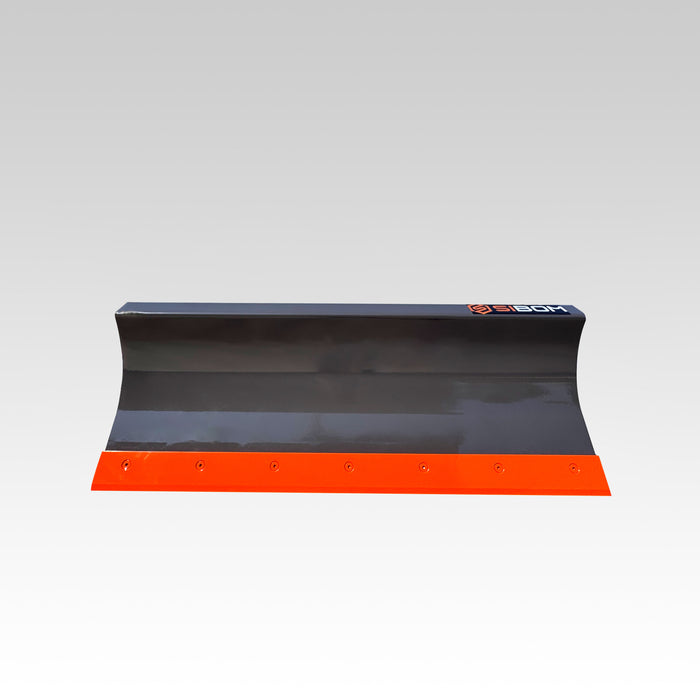

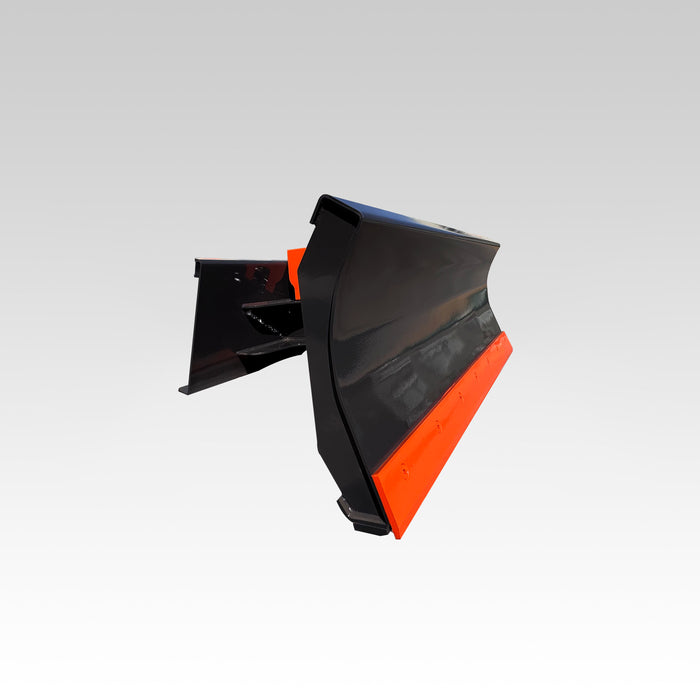

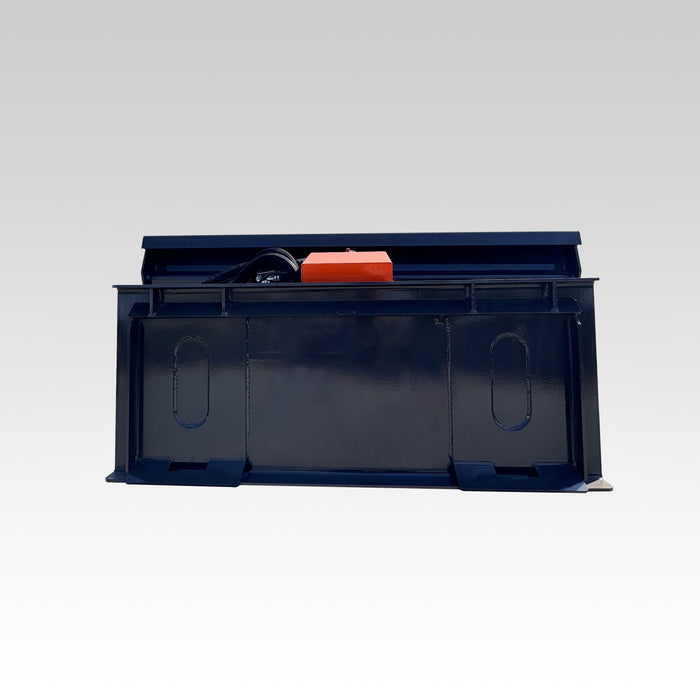

SIBOM Skid Steer Dozer Blade, 30° Hydraulic Angling, Depth Shoes, Trip Spring
SIBOM Skid Steer Dozer Blade, 30° Hydraulic Angling, Depth Shoes, Trip Spring
- Compatible with major wheel loader & skid steer brands
- Heavy-duty construction for demanding job sites
- OEM customization available on request
- Professional technical support & after-sales service
Product Overview
Tackle large-scale grading and land clearing with the Sibom Industry 0309 Series Dozer Blade, designed for heavy-duty tasks with maximum efficiency.
Sibom Earthmoving & Demolition are designed for reliable performance in demanding working environments. Manufactured with durable materials and advanced engineering, they provide excellent operational efficiency and long service life across construction, agriculture, landscaping and material handling applications.
The Sibom Dozer Blade is a versatile, powerful earthmoving attachment designed to transform your skid steer into a high-performing dozer machine.
Built for durability and efficiency, this attachment allows operators to move dirt, backfill trenches, grade surfaces, and tackle tough landscaping or construction tasks precisely and easily.
We offer four models in widths of 60", 72", 84", and 96".
The blade can tilt left or right up to 30° off-center
Key Features
Heavy-duty steel construction
High wear resistance for extended service life
Optimized design for loading efficiency
Suitable for harsh working conditions
OEM customization available
Quality inspection before dispatch
Technical Specifications
| Model | sdbl60 | sdbl72 | sdbl84 | sdbl96 |
|---|---|---|---|---|
| Overall Width (in) | 60.2 | 72 | 83.5 | 94.5 |
| Steering 30° Width (in) | 50 | 59.8 | 72.7 | 85.8 |
| Overall Height (in) | 27.6 | 27.6 | 27.6 | 27.6 |
| Overall Length (in) | 38 | 38 | 38 | 38 |
| Deflection Angle (°) | ±30 | ±30 | ±30 | ±30 |
| Maximum Angle of Yaw (°) | ±10 | ±10 | ±10 | ±10 |
| Weight (lbs) | 1157.4 | 1225.6 | 1267.7 | 1377.9 |
| Working Flow (GPM) | 5.3 - 7.9 | 5.3 - 7.9 | 5.3 - 7.9 | 5.3 - 7.9 |
| Operating Voltage (V) | DC12/24 | DC12/24 | DC12/24 | DC12/24 |
| Maximum Pressure Allowed (psi) | 3045.8 | 3045.8 | 3045.8 | 3045.8 |
| Package Size (in) | 66.1 x 43.3 x 35.4 | 77.9 x 43.3 x 35.4 | 89.7 x 43.3 x 35.4 | 100.4 x 43.3 x 35.4 |
| Pack Weight (lbs) | 83.8 | 88.2 | 92.6 | 99.2 |
