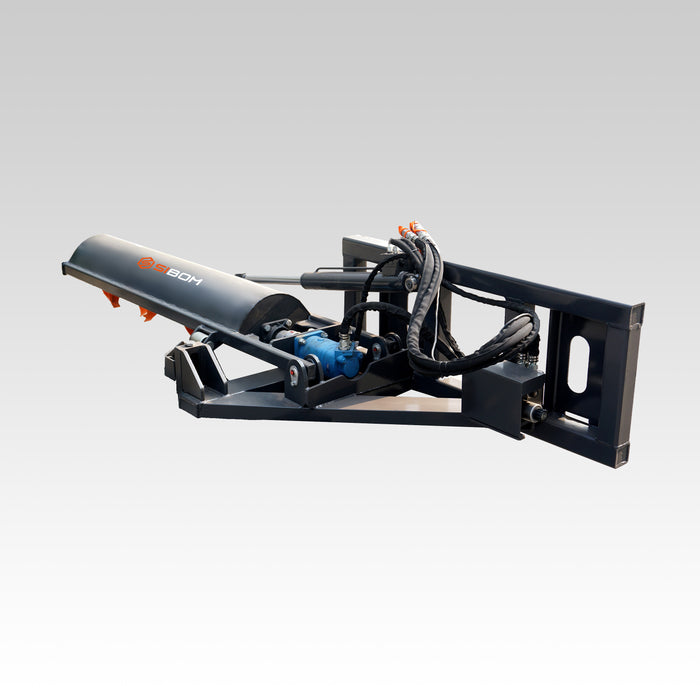

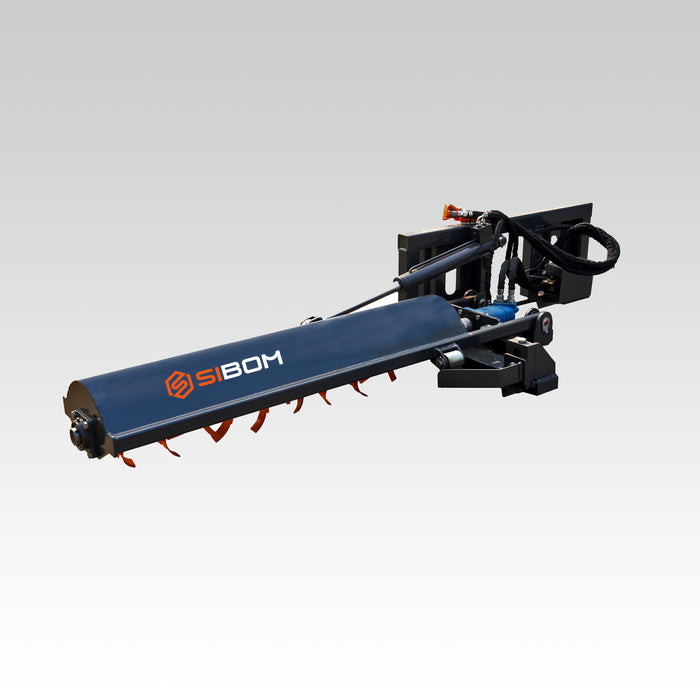

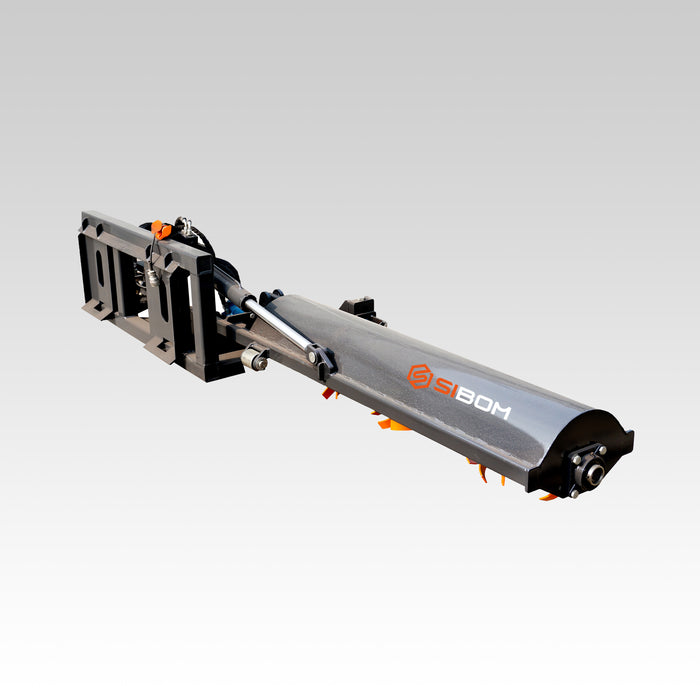

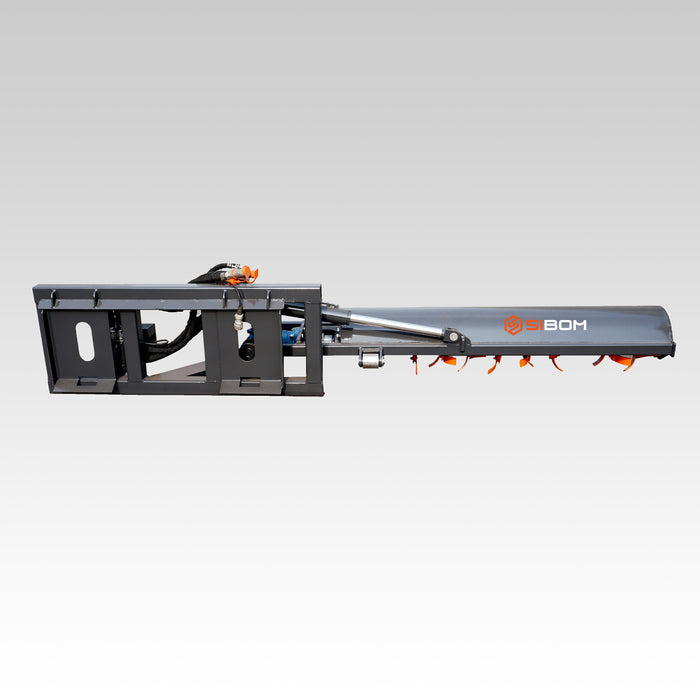

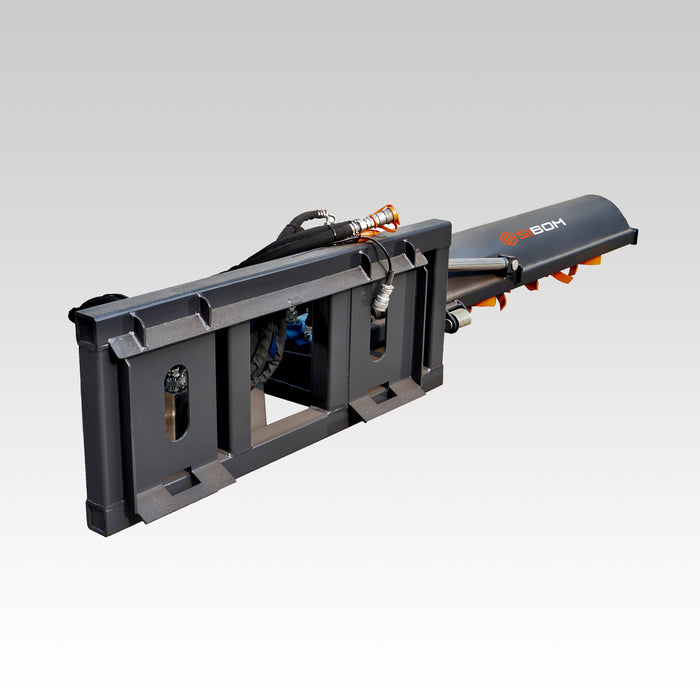

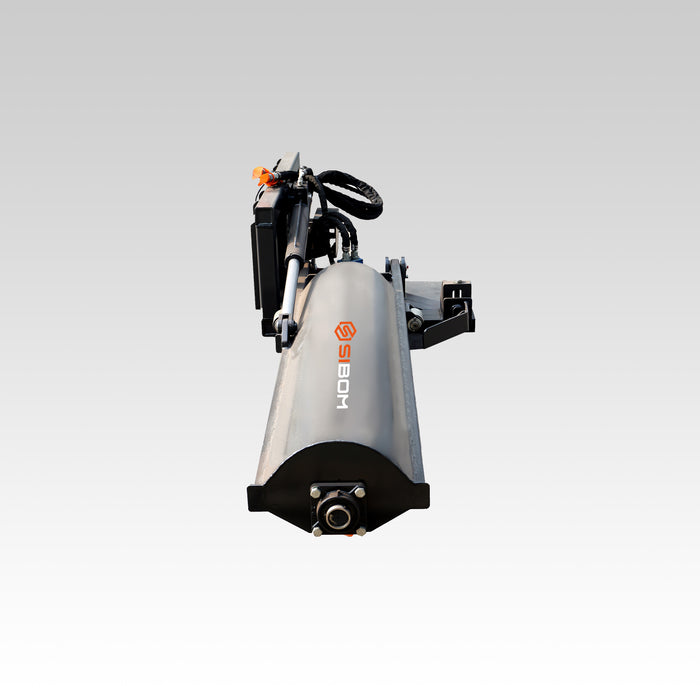

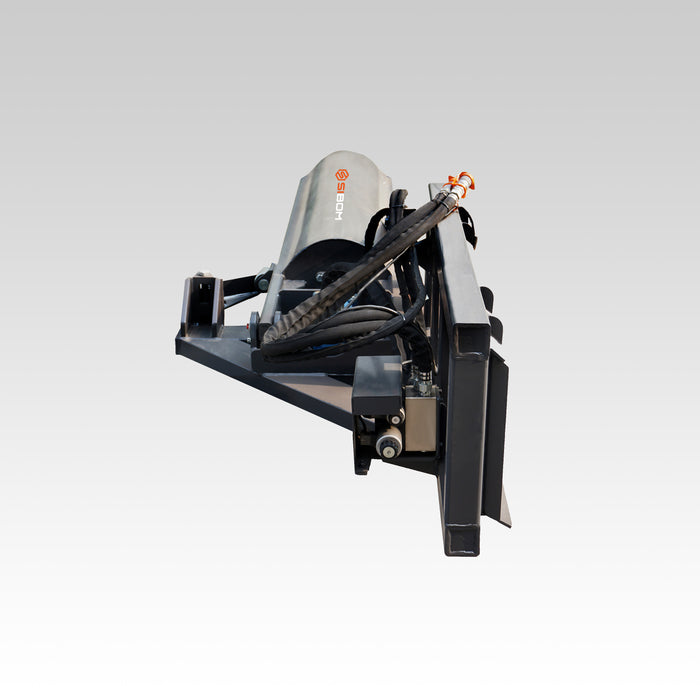

Sibom Industry Skid Steer Rotary Tillage Sand Bedding Scarification device

Compatible with major wheel loader & skid steer brands
Heavy-duty construction for demanding job sites
OEM customization available on request
Professional technical support & after-sales service

Product Overview

The Sibom Rotary Tillage Sand Bedding Scarification device is equipped with a sliding loader. A high-torque hydraulic motor drives a rotary tillage mechanism specifically designed for cow bedding. The sliding loader operates smoothly, ensuring that the rotary tillage mechanism effectively loosens and flattens uneven bedding in the cow house. This high-efficiency operation significantly reduces labor and material resource requirements. The rotary tillage depth is maintained at or below 5.31 in...

Sibom Agriculture & Feed are designed for reliable performance in demanding working environments. Manufactured with durable materials and advanced engineering, they provide excellent operational efficiency and long service life across construction, agriculture, landscaping and material handling applications.

The Sibom Rotary Tillage Sand Bedding Scarification device is equipped with a sliding loader.
A high-torque hydraulic motor drives a rotary tillage mechanism specifically designed for cow bedding.
The sliding loader operates smoothly, ensuring that the rotary tillage mechanism effectively loosens and flattens uneven bedding in the cow house.
This high-efficiency operation significantly reduces labor and material resource requirements.
The rotary tillage depth is maintained at or below 5.31 inches.

Key Features

Heavy-duty steel construction

High wear resistance for extended service life

Optimized design for loading efficiency

Suitable for harsh working conditions

OEM customization available

Quality inspection before dispatch

Technical Specifications

Model	srtsd
Total Width (in)	136.42
High Working Status (in)	25.59
Total Length (in)	40.94
Non-working Status is High (in)	93.11
Number of Blades (one of the bars)	32 (8 Group)
Rotary Tillage Depth (in)	≤5.31
Blade Diameter (in)	φ13.98
Roof Rotary Speed (rpm)	130-200
Working Flow Rate (gal/min)	17.17-22.45
Allowable Maximum Pressure (psi)	3045.88
Theoretical Weight (including Pendant) (lbs)	848.78
